SANHE Ferrite Core High Frequency EFD20 SMPS Flyback Transformers
There are two basic types of DC transformers, namely, a DC-DC converter whose output voltage is regulated and a "DC transformer" whose output voltage is adjusted with the input.
The basic requirements:
(1) Realize the electrical isolation of input and output voltage and the proportional relationship between input and output, and can realize multiple output;
(2) Use transformer leakage inductance for energy transmission, no energy consumption, conversion efficiency of 1, and high power density;
(3) The output does not need filter inductance, which can greatly reduce the volume and weight of the output filter, with good dynamic performance and fast transient response;
(4) The system frequency bandwidth can transmit voltage without distortion;
(5) Open loop control is adopted, the control circuit is simple, it is easy to realize soft switching, and the switching frequency can be further improved;
(6) High reliability, small electromagnetic interference to power supply and electrical equipment.
CONFIGURATION & DIMENSIONS:（Unit: mm）
NOTE
1.1 FIXING TAPE FOR CORE: 0.025x6.5mmx3.0Ts；
1.2 PIN2.3,6,7, REMOVE;

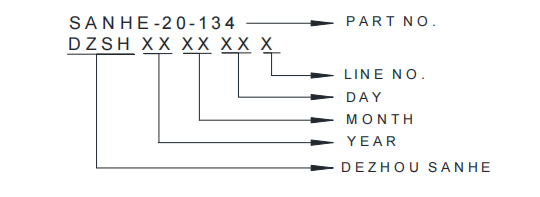

1.3
DIMENSIONS & OUTLINE DRAWING
NOTE：
A. Vacuum Varnishing；
B. Net Weight: 13.2g ±10% /pcs。
C. ( )=TEELON TUBE
WINDING SPEC
| NO. |
MARGIN |
TERMINAL |
WIRE | TURNS | WINDING METHOD | INSULATIONI BETWEEN COILS | ||
| 1-4 | 5-8 | START | END | |||||
| W1 |
（4） |
（5） | UEW-H Φ0.2 | 280T | SOLENOID | 0.05*13.5mm/2T | ||
| W2 |
（1） |
（8） | UEW-H Φ0.5 | 20T | SOLENOID | 0.05*13.5mm/2T | ||
ENVIRONMENTAL TEST
| NO | TITLE | CONDITION | REMARKS |
| 1 | HIGH TEMPERATURE | 120℃±2.0℃ 96Hrs | Must meet the requirements of
No.4-4 and 4-5. |
| 2 | LOW TEMPERATURE | -25℃±2.0℃ 96Hrs | |
| 3 | LOW TEMPERATURE | +40℃±5；96±3%R.H; 120Hrs | |
| 4 | THERMAL SHOCK | -25℃±2.0℃ 30Minutes;
Room Temp 10Minutes; 105℃±2.0℃ 30Minutes; 5 Cycles Room Temp 10Minutes; |
Must meet the requirements of
No.4-4, 4-5 and must operate properly. |
| 5 | 120℃ | Must operate properly | |
| 6 | -25℃-120℃ | ||
| 7 | -30℃~+90℃ | ||
PHYSICAL TEST
| NO | TITLE | CONDITION |
| 1 | TERMINAL STRENGTH | The terminal shall be not remarkably damage by pulling and pushing of 1.02kg for 30± 5 seconds in the axis directions. (JIS C 0051) |
| 2 | VIBRATION
RESISTANCE |
Appearance and structure shall be no abnormality after vibrating at the frequency varying uniformly between the approximate limits and 10 and 55 and 10 Hz at 1 minute and the amplitude of 1.5 mm for 2hrs in 3 mutually perpendicular directions. (JIS C 0040) |
| 3 | SOLDERABILITY | Solder shall be attached uniformly around the dipped portion after dipping into solder at 235±5℃ for 3.0±0.5 seconds。(JIS C 0050) |
| 4 | SOLDER HEAT
RESISTANCE |
No remarkable damage after dipping into solder at 260±5℃ for
10±1seconds up to 1.0-1.5mm from the attachment surface. (JIS C 0050) |
Application
Widely used in the field of controlling switch power supply, LCD power supply, high-power UPS inverter power supply, computer power supply, energy-saving lamps
Kindly Reminder
1. About the SAMPLE. Please provide specification or sample materials, we will evaluate your product, design and produce samples.
2. About PRICE. Transformers are customized products. Due to the difference in material and design, even if the model is the same,the price is different. The price also depends on the complexity of the parameters and the number of orders.
3. Regarding SHIPPING. SamplE within 5-7 days; mass production within 10 to 20 days.
4. Packaging, logistics, according to the specific requirements of the purchase and sale contract.
Packing & Delivery
FAQ
1.Can I get sample for testing before bulk order?
Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.
2.What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.
3. What's your Guarantee?
Within 2 years, if any quality problem, the defect products will be all replaced at once.
4. How to purchase from us?
Offer Requirement for Inquiry →Producing Sample →Sample Confirmation → Quotation →PI → Confirm PI → Arrange Payment→ Manufacture→Shipping
